PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

Product Categories
Wuxi Lenge Purification Equipments Co., Ltd.
Contact Now

PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

  • 1
  • 2

Brand Name : LENGE

Model Number : NK/NPT/BT

Certification : CE/SGS/ISO/FDA

Place of Origin : China

MOQ : 1 PCS

Price : USD 3 - 10 / PCS

Payment Terms : T/T, L/C

Supply Ability : 2000 Pieces per Month

Delivery Time : 5 - 7 Days

Packaging Details : Cartons

Filter Media : PVDF

Connection Type : TC Connection

End Caps : PP

Length : 10 inch

Maximum Operating Temperature : 60℃ ( 140℉ )

Use : Chemical Industry, Pharma, Lab

Contact Now

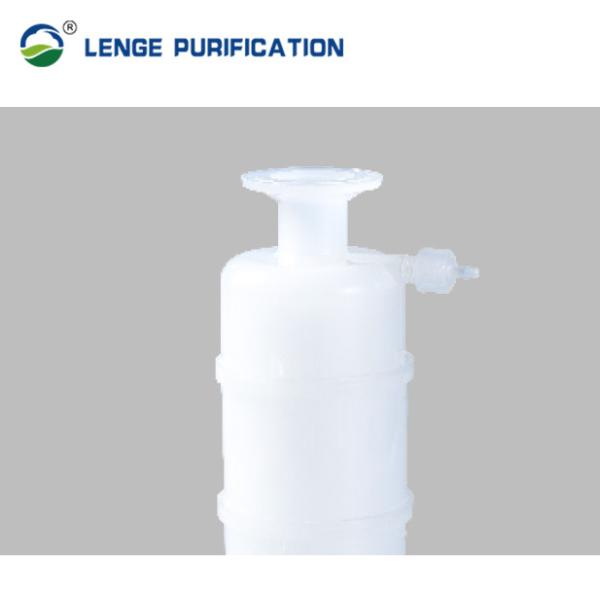

10 Inch PVDF Pleated Membrane Filter Capsule With TC Connection

NK/NPT/BT Series Capsule Filters are compact capsule assemblies with integrated compact structure design, which can reduce residue and material waste. It is equipped with a housing to save costs. The disposable use requires no cleaning, is simple to install, and can be used directly. Different sizes meet the requirements of big or small volume liquid or gas filtration.

​NK/NPT/BT Series Capsule Filter:

PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection
PVDF Pleated Membrane Filter Capsule 10 Inch With TC Connection

Features and Benefits:

  • Compact and rigid construction

  • Good sealing performance

  • High pressure resistance

  • Low hold-up volume

  • Disposable design, easy change-out

Material & Size
Filter Media PES/Nylon/Hydrophobic PTFE /Hydrophilic PTFE/
Hydrophobic PVDF/PP/Glass Fiber

End Caps/Core/Housing/

Support&Drainage/Cage

 PP
Inlet/Outlet NK: 50.5MM BT: 3/8" NPT: 1/4"
Vent/Drain CNE:1/8"MNPT CSE:1/4"SWG CNE-D:1/4"MNPT
Length NK: 2.5", 5",10" NPT:2.5", 5" BT:2.5", 5"
Outside Diameter 68mm (2.67 in)
Performance Characteristics
Removal Ratings (µm)
PP: 0.1, 0.22, 0.45...50, 100
PES: 0.04, 0.1, 0.22, 0.45, 0.65, 0.85, 1, 5
PTFFE: 0.1, 0.22, 0.45...10
PVDF: 0.1, 0.22, 0.45
NL: 0.1, 0.22, 0.45, 0.65, 1
GF: 0.1, 0.3, 0.5, 1
Maximum Operating Temperature 60℃ (140℉)
Maximum Forward Differential Pressure Liquid: 5 bar@23℃ (50.8 psid@73.4 ℉)
Air&Gas: 3.0 bar@23℃ (43.5 psid@73.4 ℉)


Typical Application:

● Chemical Industry: filtration for ink, photoresist, developer, optical resin filtration, etc.
● Electronics Industry: filtration for deionized water, ultrapure water filtration, etc.
● Food Industry: filtration for beverage, mineral water filtration, etc.
● Pharmaceutical Industry: filtration for injection, vaccine, culture solution, eye drops, etc.

Wuxi Lenge Purification Equipments Co., Ltd. is located in the hinterland of the Yangtze River Delta - Wuxi, Jiangsu Province.

It is a high-tech enterprise integrating R & D, production, sales and testing, specializing in purification and filtration equipment

manufacturing for more than 20 years.
